Loop Ini Categories Node

The Loop Ini Categories node iterates over INI sections (categories).

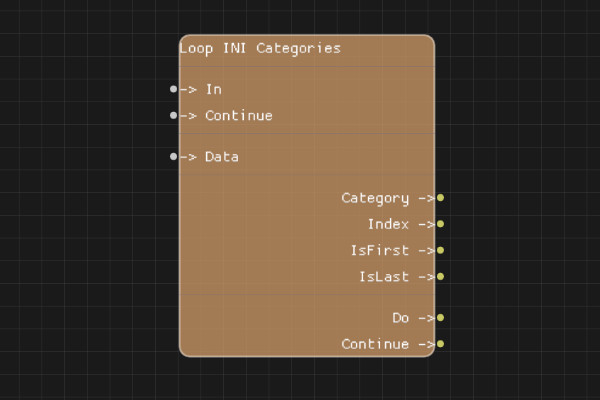

Loop INI Categories Node

Description​

The Loop Ini Categories node iterates over the sections (categories) in an INI structure, executing the loop body for each section.

Execution Inputs​

  • In (execution): The execution flow enters through this pin to start the loop
  • Continue (execution): The execution flow returns here after each iteration

Variable Inputs​

  • INI (any): The INI data to iterate over (must be parsed INI structure)

Execution Outputs​

  • Do (execution): Execution path for the loop body
  • Continue (execution): Execution returns here to continue to the next section

Variable Outputs​

  • Category (string): The current section name
  • Data (any): The key-value pairs for the current section

Special Notes​

  • Input must be parsed INI data structure
  • Iterates over sections (categories) in the INI file
  • Each iteration provides the section name and its key-value pairs
  • Connect loop body to "Do" and connect end back to "Continue"

Example Usage​

Process each section in an INI file. For example, iterate over configuration sections and process their settings.

Flow Download Example​

Placeholder for flow download example

Additional Pictures​

Placeholder for additional node images and examples
