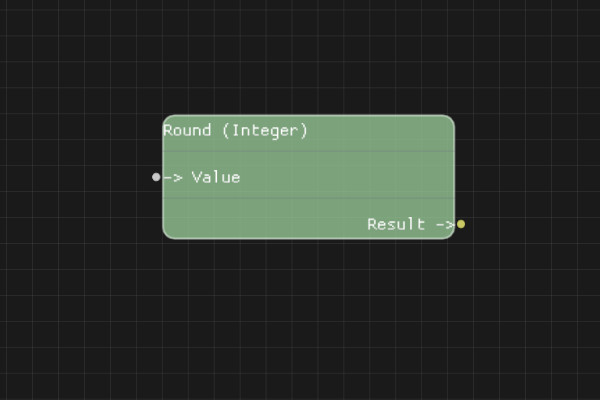

Round (Integer) Node

The Round (Integer) node rounds an integer to the nearest multiple of a specified value.

Round (Integer) Node

Description​

The Round (Integer) node rounds an integer value to the nearest multiple of a specified "RoundTo" value (default is 10). Useful for rounding to tens, hundreds, etc.

Execution Inputs​

None (data node, no execution flow)

Variable Inputs​

  • Value (integer): The integer value to round

Execution Outputs​

None (data node, no execution flow)

Variable Outputs​

  • Result (integer): The input value rounded to the nearest multiple of RoundTo

Special Notes​

  • If the input cannot be parsed as an integer, the result defaults to "0"
  • The "RoundTo" property must be set to one of: 5, 10, 100, or 1000 (defaults to 10 if invalid)
  • This node doesn't have execution pins - it's a pure data node

Example Usage​

Round integers to convenient multiples, such as rounding prices to nearest 5 or 10, or quantities to nearest 100. Set the RoundTo property and connect an integer output to the Value input, then use the Result output in other calculations or comparisons.

Flow Download Example​

Placeholder for flow download example

Additional Pictures​

Placeholder for additional node images and examples
