Set OpenAI Proxy Node

The Set OpenAI Proxy node configures proxy settings for OpenAI API requests. This is useful when you need to route API calls through a proxy server.

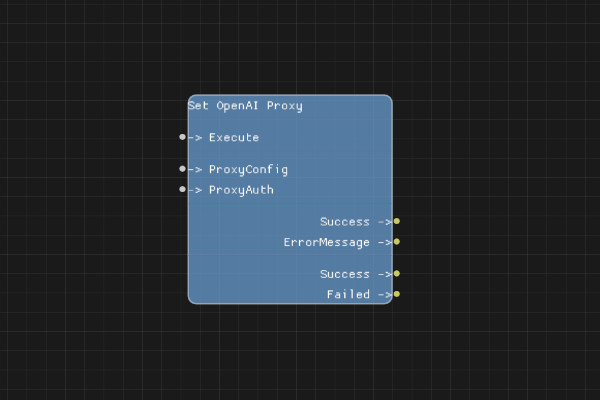

Set OpenAI Proxy Node

Description​

The Set OpenAI Proxy node configures HTTP proxy settings for OpenAI API requests. It supports both basic proxy configuration and proxy authentication.

The proxy configuration is stored in session state and used by all subsequent OpenAI API calls in the flow.

Execution Inputs​

  • Execute (execution): Triggers the proxy configuration

Variable Inputs​

  • ProxyConfig (string): The proxy URL in the format http://host:port or https://host:port
  • ProxyAuth (string, optional): Proxy authentication in the format username:password (optional)

Execution Outputs​

  • Success (execution): Execution continues here if the proxy was successfully configured
  • Failed (execution): Execution continues here if configuration failed

Variable Outputs​

  • Success (boolean): "true" if the proxy was successfully configured, "false" otherwise
  • ErrorMessage (string): Error message if configuration failed, empty string otherwise

Special Notes​

  • The proxy configuration is stored in session state
  • Proxy URL must be in valid format (http:// or https://)
  • Proxy authentication is optional but must be in username:password format if provided
  • Proxy settings apply to all OpenAI API calls after this node executes
  • To disable proxy, leave ProxyConfig empty or don't use this node

Example Usage​

Configure a proxy without authentication:

  1. Set ProxyConfig to http://proxy.example.com:8080
  2. Leave ProxyAuth empty
  3. Connect Execute to start the flow

Configure a proxy with authentication:

  1. Set ProxyConfig to http://proxy.example.com:8080
  2. Set ProxyAuth to username:password
  3. Connect Execute to start the flow

Flow Download Example​

Placeholder for flow download example

Additional Pictures​

Placeholder for additional node images and examples
