Create Image Variation Node

The Create Image Variation node generates variations of an existing image using DALL-E.

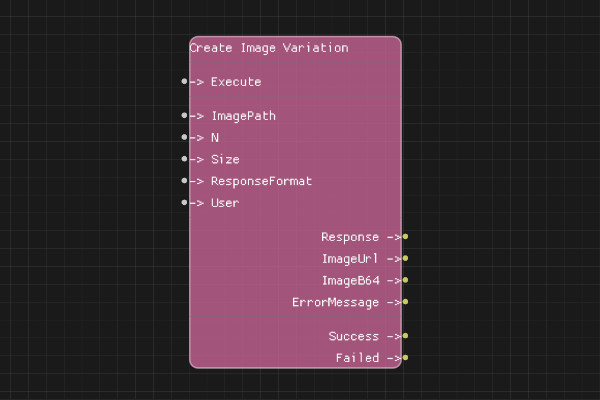

Create Image Variation Node

Description​

The Create Image Variation node creates variations of an input image. The variations maintain the style and content of the original image while introducing variations.

Execution Inputs​

  • Execute (execution): Triggers the image variation request

Variable Inputs​

  • ImagePath (string): Path to the image file to create variations of (must be a valid PNG file)
  • N (integer, optional): Number of variations to generate (1-10, default: 1)
  • Size (string, optional): Image size. Must be one of: "256x256", "512x512", "1024x1024" (default: same as input image)
  • ResponseFormat (string, optional): Format of the response. Must be "url" or "b64_json" (default: "url")
  • User (string, optional): User identifier for tracking

Execution Outputs​

  • Success (execution): Execution continues here if the request succeeded
  • Failed (execution): Execution continues here if the request failed

Variable Outputs​

  • Response (string): Full JSON response from the API
  • ImageUrl (string): URL of the variation image (if ResponseFormat is "url")
  • ImageB64 (string): Base64-encoded image data (if ResponseFormat is "b64_json")
  • ErrorMessage (string): Error message if request failed

Special Notes​

  • Requires a valid API key configured via Set API Key node
  • Input image must be a PNG file
  • Variations maintain the style and general content of the original
  • Maximum N is 10 variations per request
  • Image file must be accessible from the system

Example Usage​

Create variations of an image:

  1. Set ImagePath to "path/to/image.png"
  2. Set N to 3 (to generate 3 variations)
  3. Set Size to "1024x1024"
  4. Connect Execute to generate variations
  5. Use ImageUrl output to get the variation images
